CMA

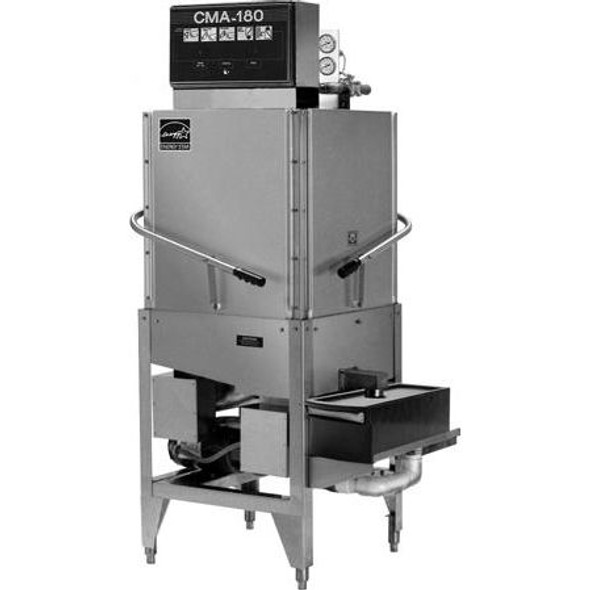

CMA 180 T CB Tall Corner High Temp 220V/60Hz/3P w/Booster
(No reviews yet)
Write a Review
- SKU:
- CMA-01633.28
- MPN:
- CMA-180TCB
Frequently bought together:
Description
Product Highlights
- Energy Star® Approved
- 60 racks / 240 covers per hour.
- Economical to operate. Uses only 1.24 gallons of water per cycle.
- Split-door design provides a sheet pan door clearance of 27-inches, reduces overall (open-door) height of machine to 93-1/2". A beneficial feature for kitchens with low ceilings.
- Automatic soil purging system filters wash water and traps plate debris into an external tray. Tray can be easily removed for dumping contents.
- All stainless steel construction offers durable performance and years of trouble free operation.
- Built-in chemical resistant industrial 7kW heater is proven to be more durable than commercial style heaters.
- Unique spray arm system features upper and lower stainless steel wash arms with reinforced end caps. Specially designed pull-pins allow wash arms to be easily removed for cleaning.
- Top mounted control box is water tight and includes a rack counter, extended wash/delimer switch and easy to read temperature gauges.
- Auto start/stop makes operation safe and easy.
- Field convertible for a wide range of applications.
- Safety Temp feature assures 180°F sanitizing rinse every cycle.
- Single point electrical connection.
- Automatic tank fill.
- Interchangeable upper and lower arms.
Specifications
| Brand | CMA |
| Model | CMA-180 T C w/B (3ph) |
| Electrical Rating | 208V/1Ph 240V/1Ph 208V/3Ph 240V/3Ph |
| Dishrack Dimensions | 19-3/4" x 19-3/4" |
| Capacity | 60 Racks/hour |
| Operating Cycle (Seconds) | Wash: 44 Rinse: 11 Total: 56 |
| Wash Tank Capacity | 9 gallons |
| Pump Capacity | 69 GPM |
| Operating Temperature | Wash: 155-160F Rinse: 180-195F |
| Water Consumption | 1.24 gallons/rack |
| Motor | 1 HP (wash pump) |
| Dimension (WxDxH) | 25.5" x 25" x 70" |
Documents
Additional Information
Racks Per Hour: |
60 |
High or Low Temp: |
High Temp |
Type: |
Single Rack |
Dishwasher Style: |
Corner |
Booster Heater Included: |
Yes |
Energy Star Qualified: |
Yes |
