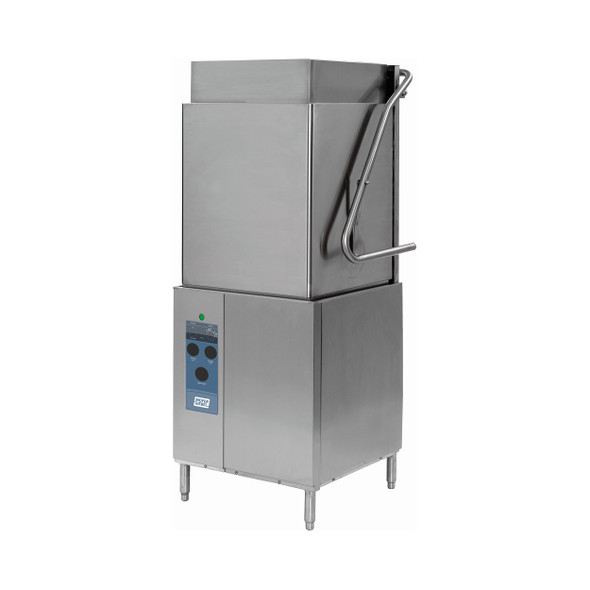

Champion DH-6000T-VHR Ventless Heat Recovery High Temperature Hood-type Dishwashing Machine

$19,500.00
(No reviews yet) Write a Review
SKU:
DH-6000T-VHR-2081

Product Features

  • Factory authorized startup
  • Ventless Heat Recovery
  • HMI – Operator Touch Screen Interface
  • On-Board Service Diagnostics
  • Field Convertible – single to three, or three to single phase
  • Sleep Mode - All internal heaters shut off after 4 hours idle
  • Door Interlock – locks door closed during the vent fan cycle
  • Built-in booster configured to ensure 180° rinse
  • Field convertible from straight to corner operation
  • Dual NSF listed as both a dishwasher and potwasher
  • Rinse Sentry – ensures 180°F final rinse
  • Auto start – starts unit when hood is closed
  • Single point electrical connection
  • High efficiency 2 HP pump
  • Self draining pump
  • Automatic tank fill
  • Automatic drain valve – drains wash tank when power is off
  • PRV (Mounted Pressure Reducing Valve)
  • 4 selectable cycles
  • 27" [686mm] extended clearance

Specifications

ModelDH-6000T VHR
Dimensions (WxDxH)33-15/16" x 31-5/8" x 79"
Shipping Weight350 lbs.
Electrical208-240/60/1
208-240/60/3

Field Convertible
1 to 3 phase, or 3 to 1 phase
Capacity40 Racks/hr
Water consumpion0.73 gal./rack
max. 29 gal./hour
Motor2 HP
Time cycle in secondsWash: 36
Rinse: 8
Sanitary Dwell: 16
Vent Fan: 30
Total cycle: 90
Warranty1 year parts and labor
