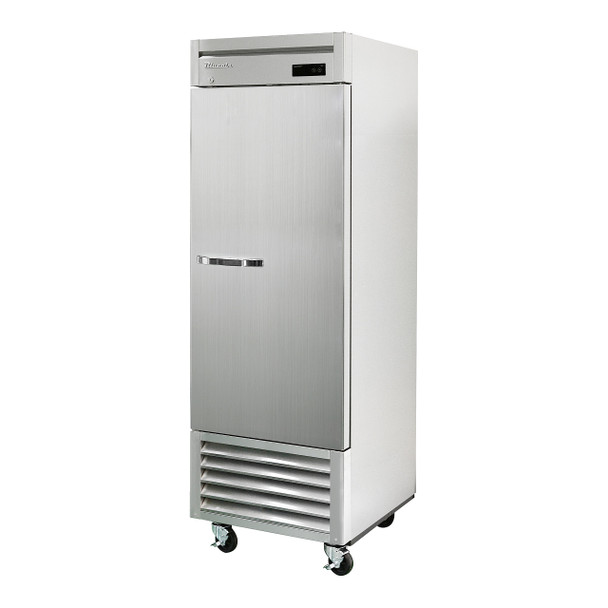

Blue Air BSR23-HC Reach-In Refrigerator, One-Section, 23 cu. ft.

BSR23-HC, Bottom Mount Reach-In Refrigerator

Standard Features

1. Cabinet construction

• Stainless steel cabinet construction
• Stainless steel interior and exterior (galvanized steel back & bottom).
• Cycolpentane Insulation – Contains no hydro-fluorocarbons (HFCs) and is environmentally friendly.
• Epoxy coated wire shelves with adjustable shelving height.
• 4 shelves per compartment
• Four (4) 4” Diameter swivel casters with front brakes standard. Six (6) casters on three-door models of which two (2) have front brakes.
• Designed to accept full size roll-in racks for bun sheet pan (18”L x 26”D)

2. Refrigeration

• Hydrocarbon refrigerants (R-290) – increases energy efficiency by up to 25% compared to using HFC refrigerants. It is safer for the environment and does not cause ozone depletion.
• Front sliding refrigeration unit allows unit to be serviced without being moved.
• Self-contained system, bottom mounted compressor provides quick and easy maintenance
• Electrodeposition coated evaporator increases performance by maintaining the heat transfer rates over the life of the evaporator and reducing potential corrosion.
• Air guard on rear wall ensures proper air circulation and cooling.
• Innovative hot gas frame heating system reduces condensation and increases energy efficiency.
• Refrigerators have a temperature range between 33°F ~ 39°F
• Standard Fabric condensation

3. Doors

• Self closing doors (doors close at 90° or less)
• Automatic hold open door feature at 110°
• Durable door gasket with easy replacement.
• Lifetime guaranteed heavy duty all metal door handles. (Ni-Cr Plated)
• Door designed to open easily.
• Doors built with pressure relievers to eliminate vacuum pressure and allow easy door opening.
• Standard door locks

4. Design &Features

• Self-diagnostic digital temperature control & monitor system
• Digital display allows for easy monitoring
• Digital controls include automatic evaporator fan motor delay.
• Rounded corner design gives a stylish appearance and reduces chances of injury.
• Visual and audible door open alarm, alarm sounds when doors are not completely closed to protect against food spoilage

5.Lighting

• LED Interior lighting.

6.Standard

• NSF/ANSI Standard 7 compliant

7. Connection

• 9 ft long flexible three wire cord with molded plug

Specifications

Warranty: 3 Year Parts & Labor, Additional 2 Year Compressor

Documents

• Spec Sheet
