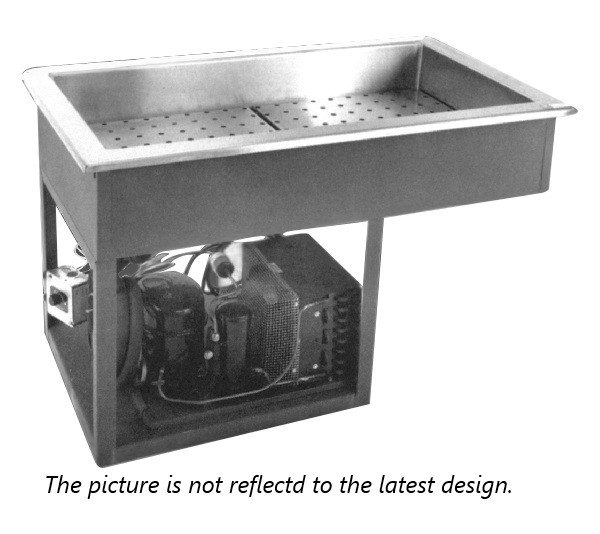

Win Depot Self-Contained Drop-In Cold Pans

Specifications:

• Drop-in, self-contained, refrigerated display cold pan.
• Top and interior to be one piece, continuously welded construction of 18 gauge #304 #430 stainless steel #3 finish.
• Interior fitted with 1" drain at one end.
• Drain nipple supplied with gate valve.
• 1" high-perforated stainless steel bottom strainer plates provided.
• Exterior to be corrosion resistant steel.
• Insulation to be high-density polyurethane, foamed in place.
• Condensing unit mounted on corrosion resistant framework, suspended below unit body.
• Unit interior bottom wrapped with refrigerating lines.
• Studs fitted to each corner for drawing unit down tight against countertop.
• Controls and expansion valve supplied and installed.
• 6' cord set (NEMA5-15P) supplied for 120V operation.

Features:

• All stainless steel top and interior—one piece.
• Drain, gate valve, and cord set provided.
• Optional stainless, perforated bottom strainer plates provided.
• Self-contained, refrigerated unit for cold display with or without ice.
• Custom size available.
• One-year limited warranty, NY-Metro.

產品規格
本公司裝機冷盤目前沒有通過 NSF 標准
本產品設計技術標准,冷盤(盤內溫度為25’ -30°;凍盤溫度爲0°-10°)
裝機冷盤按冷卻方式分類(直接冷卻-支管;間接冷卻-風機),按制冷溫度分熱(冷藏和冷凍)
冷盤設計:支管盤深:6° ;風機盤深:11°;凍盤設計:凍盤深:4” 以下
機頭裝配位置:5格盤以下位置據中,6格盤以上位置爲左側1/4位置
客户有特殊要求,在工藝准許情况下,可以特定配置
NY-Metro一年保養

Documents

• Product Sheet

Available models may vary. Images are for reference only. Specification is subject to change without notice. Please contact us for details.
