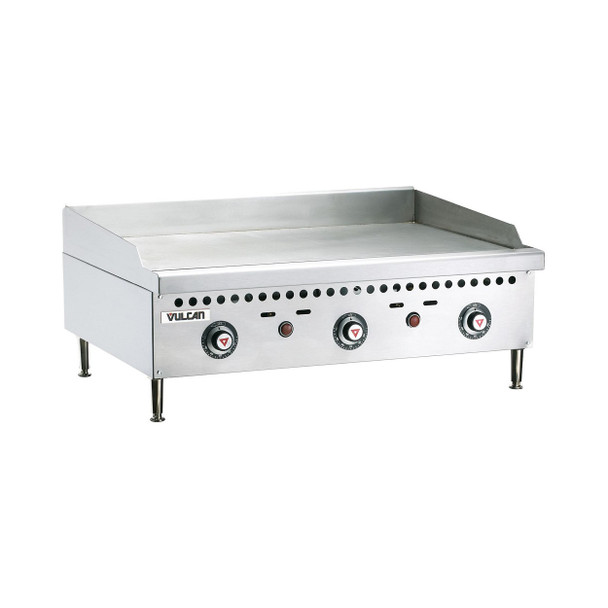

Vulcan VCRG36-T1 36" Restaurant Series Countertop Gas Griddle - Thermostatic Controls, 75,000 BTU

Features:

• Model Specific: Thermostatic Controls
• 1" thick polished steel griddle plate welded to 3 1/4" stainless steel back, tapered side splashes and stainless steel grease trough.
• Fully welded stainless and aluminized steel chassis frame.
• 12 1/2" cooking height on 4" adjustable legs.
• One 25,000 BTU/hr. “U" shaped aluminized steel burner for every 12" of griddle width.
• One embedded, mechanical snap action thermostat per burner for high performance and optimal response time.
• Temperature adjust from 200° to 450°F.
• One pilot safety valve for every two burners. Safety will completely shut off gas to pilot and burners if pilot extinguishes.
• High capacity 4 1/2 quart capacity grease can.
• 3/4" rear gas connection and convertible gas pressure regulator for LP service.
• Constructed standard for natural gas service. LP conversion kit supplied with unit.

Vulcan VCRG36-T1 Specifications

Documents

• Product Spec Sheet
• Operational Manual
