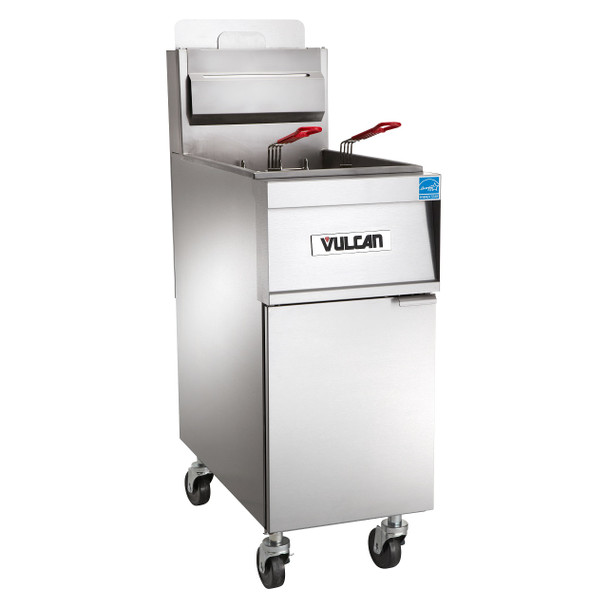

Vulcan 1TR45AF-2 TR Series 70,000 BTU Propane Gas Free Standing Fryer with Filtration - 45 Lbs

Fryer Features:

• Solid state analog now control behind the door
  • Accurate temperature control from 200° to 390°F
  • User selectable fat melt modes
  • Electronic ignition
• 70,000 BTU/Hr input per fryer
• Maintains idle temperature setting with only 4,318 BTU/Hr per fryer to save energy
• Energy saving SoftStart ignition system extends oil life while requiring lower BTU's
• Energy efficient ThreePass heat transfer system yielding 60% cooking and 72% thermal efficiency
• Stainless steel fry tanks, 45-50 lb capacity
• 1.25" Full port ball type drain valve
• Stainless steel cabinet
• Set of four adjustable casters, 2 locking
• Twin fry baskets with plastic coated handles
• Hi-limit shut off
• Electronic matchless ignition
• Tank brush and clean out rod

Filtration System Features:

• Boil Out ByPass easily removes boil out solution from fry tank without contact of drain manifold, filter pan, or motor/pump
• Drain valve interlock switch - turns off gas burners automatically when draining oil
• Drawn (seamless) 18 gauge stainless steel filter pan, 70 lb frying compound capacity
• Paperless stainless steel filter screen - Filters from 2 sides
• 1/3 HP Motor and pump circulate frying compound at 8 GPM
• One touch push button switch to engage pump and motor
• Tank brush and clean out rod
• 6' High temperature discard hose

Vulcan 1TR45AF-2 Specifications

Documents

• Product Spec Sheet
