Jackson

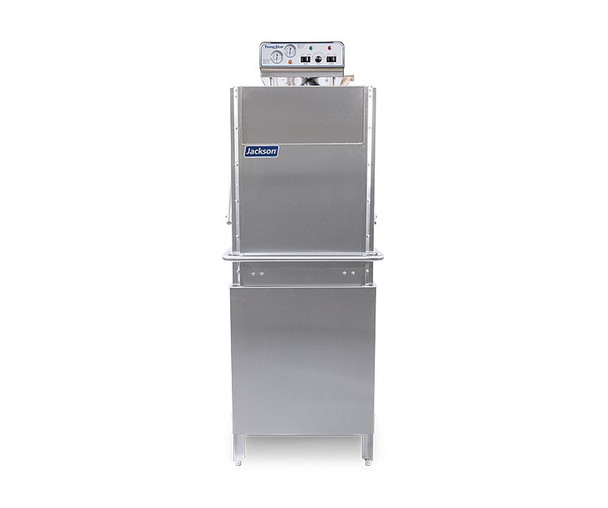

Jackson TempStar HH-E High Temperature Sanitizing Door-Type Dishmachine with Tall Chamber
- SKU:
- TEMPSTAR HH-E
- MPN:
- TEMPSTAR HH-E
Description
Single rack, electric tank heat, built-in booster heater with Sani-Sure™ final rinse system, 27” clearance for larger wares, 55 racks per hour, 0.72 gallons per rack, dual counter-rotating lower wash arms, universal timer, self-draining stainless steel wash pump, four selectable wash cycles, top mounted controls, delimer switch, auto start/stop, exhaust vent fan control, field convertible for straight-through to corner and vice versa , field phase conversion capability, front stainless steel dress panel. 208-230v, 60Hz, single or three phase.
Standard Features
- ENERGY STAR® certified
- High temperature sanitizing door-type dishmachine
- Higher hood, single rack with dual functionality – serves as a dishwasher and a pot & pan washer
- Cleans 55 racks per hour, using only 0.72 gallons of water per rack
- Exclusive Sani-Sure™ technology with built-in booster ensures proper sanitation is achieved every cycle
- Fully automatic 60-second cycle
- Four selectable time cycles for warewashing flexibility and performance
- 27″ clearance accommodates large sheet pans and 60 qt mixing bowls
- Exclusive dual counter-rotating lower wash arms
- Auto-fill/auto-start
- Specially designed stainless steel nozzles provide superior cleaning action
- Telescoping doors stay open for ease of loading and unloading machine
- Self-draining stainless steel pump (no cast iron or plastics) assures no detergent residue between wash and final rinse cycles
- Top mounted controls are easy to read and access
- Low watt density electric wash tank heater
- Hi-limit thermostat and low water protection
- Built-in 70° F (21° C) rise booster heater is standard; 40° F (4° C) rise booster heater is available but must be specified at time of order
- Large scrap tray
- Uses standard 20″ x 20″ (508 mm x 508 mm) racks
- Door switch
- Delime/manual wash switch
- Exhaust vent fan control
- Field convertible for straight-through to corner and vice versa
- Available in electric or steam
- Front stainless steel dress panel
- Efficient 2 HP wash pump motor
- Durable stainless steel construction
- Adjustable bullet feet
Specifications
| Manufacturer | Jackson Warewashing Systems |
| Model No. | TempStar HH-E |
| Racks Per Hour | 55 (Ventless: 37) |
| Water Usage | 0.72 gallons per rack |
| Voltage | 208V, 230V, 1Phase/3Phase |
| Booster Heater Included | Yes |
| Dishwasher Style | Door-Types |
| Energy Star Qualified | Yes |
| High or Low Temp | High Temp |
| DIMENSIONS | |
| Width (Inches) | 28-5/8 |
| Depth (Inches) | 31-5/8 |
| Height (Inches) | 76-3/8 |
