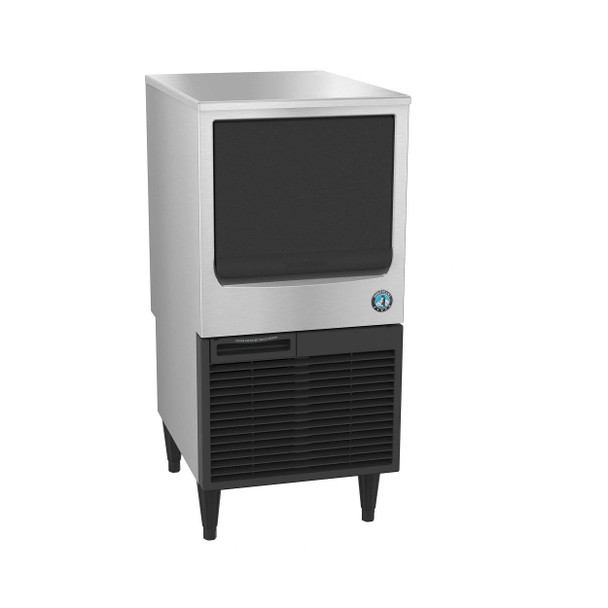

Hoshizaki KM-80BAJ Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin

Product Features

• Dimensions: 17-3/4″ W x 24″ D x 39″ H
• Up to 86 lbs of ice produced per 24 hours
• Up to 38 lbs of built-in storage capacity (1.3ft3)
• Produces crescent shaped ice cubes
• Slide in door with durable stainless steel exterior
• Icemaker with built in storage
• EverCheck™ alert system
• CycleSaver™ design
• HS-5061 drain pump assembly, sold separately
• R-134a refrigerant (7.1 oz. / 200 g)
• Heat Rejection:1350 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 3.5 amps (15 Amp Max fuse)
• 7.95 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
• ENERGY STAR® qualified
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts & Labor warranty on evaporator.

The KM-80BAJ is capable of producing approximately 86 lbs of crescent cubed ice. This Undercounter Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 38 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-80BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Icemaker with built in storage. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. Replaces KM-61BAH.

Specifications

Documents

• Product Spec Sheet
