Hoshizaki

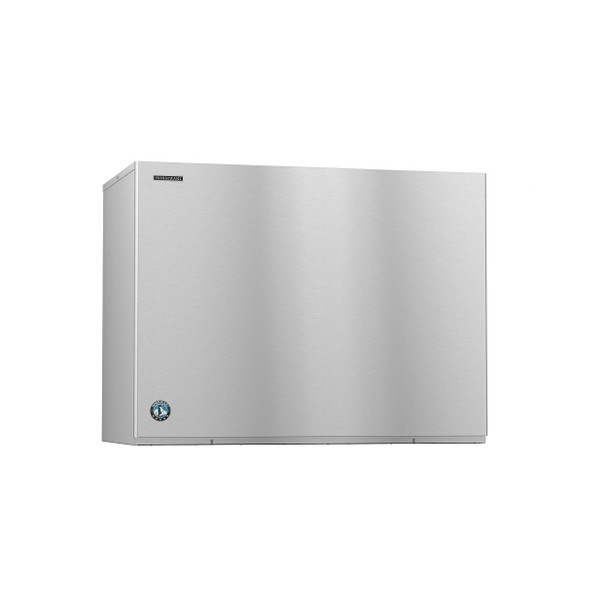

Hoshizaki KM-2200SRJ3 Crescent Cuber Icemaker, Remote-cooled, 3 Phase

(No reviews yet) Write a Review
SKU:
KM-2200SRJ3
MPN:
KM-2200SRJ3
In-store only
Frequently bought together:

Description

Product Features

  • Dimensions: 48″ W x 27-3/8″ D x 36- 7/16″ H
  • Up to 2115 lbs of ice produced per 24 hours
  • Stack 2 units for 2x the ice production
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
  • EverCheck™ alert system
  • CycleSaver™ design
  • Protected by H-GUARD Plus Antimicrobial Agent
  • R-404A refrigerant (8 lbs. 6 oz. / 3800 g)
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 10.5 amps (20 Amp Max fuse)
  • 4.16 kwh/100 lbs.@ 90/70
  • Three phase, 208-230v/60/3
  • ENERGY STAR® qualified
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.

The KM-2200SRJ3 is capable of producing approximately 2115 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-22F (Sold Separately) icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-2200SRJ3 requires a Three phase, 208-230v/60/3 electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details. Replaces KM-2100SRH3 and KM-2100SRJ3.

Specifications

Weight440 lbs
Dimensions48" W X 27-3/8" D X 36- 7/16" H in
Height36- 7/16" H
Width48" W
Depth27-3/8" D
Shipping Weight440 lbs
WarrantyValid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts & Labor warranty on evaporator.|Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Certifications:AHRI Standard 810, NSF, UL Listed, ISO 9001:14001, ENERGY STAR® Qualified
Energy Star® Qualified:Yes
Electrical Specs:Three phase, 208-230v/60/3 , Amperage: 10.5, Max Fuse/HACR Breaker: 20 A
Plumbing Specs:1/2" FPT Inlet, Minimum 3/8" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption:4.16 kWh per 100 lbs @ 90/70, 19 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 187 - 253V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (8 lbs. 6 oz. / 3800 g)

Documents

View AllClose

Additional Information

Width:
36 - 48 in
Electrical:
208-230/60/3
Condenser Type:
Remote Cooled
Daily Ice Production:
2001 - 3000 lbs
View AllClose
