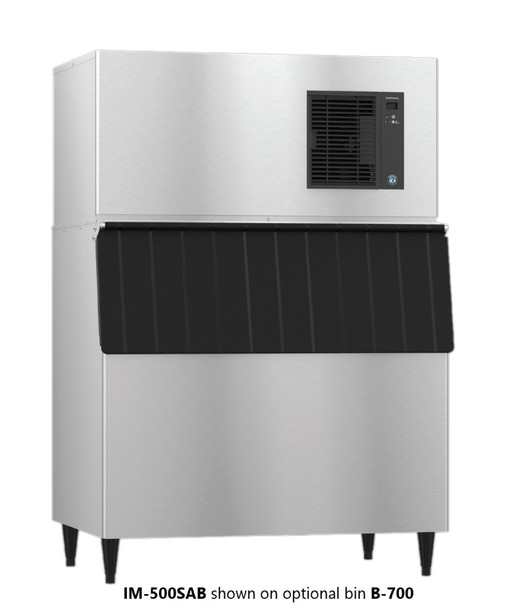

Hoshizaki IM-500SAB Air-cooled Square Cuber Icemaker - 500 Lb./day, 115V

(No reviews yet) Write a Review
SKU:
IM-500SAB
MPN:
IM-500SAB
  • Hoshizaki IM-500SAB
  • Hoshizaki IM-500SAB Air-cooled Square Cuber Icemaker - 500 Lb./day, 115V
  • Hoshizaki IM-500SAB Air-cooled Square Cuber Icemaker - 500 Lb./day, 115V
  • Hoshizaki IM-500SAB Air-cooled Square Cuber Icemaker - 500 Lb./day, 115V
  • Hoshizaki IM-500SAB Air-cooled Square Cuber Icemaker - 500 Lb./day, 115V
In-store only
Frequently bought together:

Description

  • Dimensions: 44″ W x 27-5/8″ D x 21-3/4″ H
  • Up to 489 lbs of ice produced per 24 hours
  • Stack 3 units for 3x the ice production
  • Produces individual square cubes
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
  • EverCheck™ digital control system with LED display
  • Clean individual square ice cubes
  • Panels easily removed and all components accessible for service
  • R-404A refrigerant (1 lbs. 10.5 oz. / 751.3 g)
  • Heat Rejection:4500 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 11.5 amps (20 Amp Max fuse)
  • 5.8 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1, Must be hardwired at site, no cord/plug included
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Tech Specs

Weight234 lbs
Dimensions44" W X 27-5/8" D X 21-3/4" H in
Height21-3/4" H
Width44" W
Depth27-5/8" D
Shipping Weight234 lbs
WarrantyValid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).|Five Years: Parts warranty on Compressor, air-cooled condenser coil.|
Certifications:AHRI Standard 810, NSF, UL Listed, ETL Safety Listed
Energy Star® Qualified:No
Electrical Specs:Single phase, 115v/60/1, Must be hardwired at site, no cord/plug included, Amperage: 11.5, Max Fuse/HACR Breaker: 20 A
Plumbing Specs:1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:5.8 kWh per 100 lbs @ 90/70, 23 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 4500 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 10.5 oz. / 751.3 g)

Documents

View AllClose

Additional Information

Width:
36 - 48 in
Electrical:
115/60/1
Condenser Type:
Air Cooled
Daily Ice Production:
401 - 500 lbs
View AllClose

0 Reviews

View AllClose

We currently ship exclusively to the 48 contiguous states within the United States. For more details, please review our Shipping Policy.

Related Products

Related Products

Hoshizaki KM-1601SAJ Crescent Cuber Icemaker, Air-cooled

Hoshizaki KM-1601SAJ Crescent Cuber Icemaker, Air-cooled

Hoshizaki

Product FeaturesDimensions: 48″ W x 27-3/8″ D x 27-3/8″ HUp to 1513 lbs of ice produced per 24 hoursStack 2 units for 2x the ice productionProduces crescent shaped ice cubesDurable stainless steel...
KM-1601SAJ
Hoshizaki KML-500MAJ Crescent Cuber Icemaker, Air-cooled

Hoshizaki KML-500MAJ Crescent Cuber Icemaker, Air-cooled

Hoshizaki

Product FeaturesDimensions: 30″ W x 27-3/8″ D x 22″ HUp to 442 lbs of ice produced per 24 hoursMount 2 units side-by-side for 2x the ice productionProduces crescent shaped ice cubesDurable stainless...
KML-500MAJ
Hoshizaki KM-660MAJ Crescent Cuber Icemaker, Air-cooled

Hoshizaki KM-660MAJ Crescent Cuber Icemaker, Air-cooled

Hoshizaki

Product FeaturesDimensions: 22″ W x 27-3/8″ D x 28″ HUp to 665 lbs of ice produced per 24 hoursMount 2 units side-by-side for 2x the ice productionProduces crescent shaped ice cubesDurable stainless...
KM-660MAJ

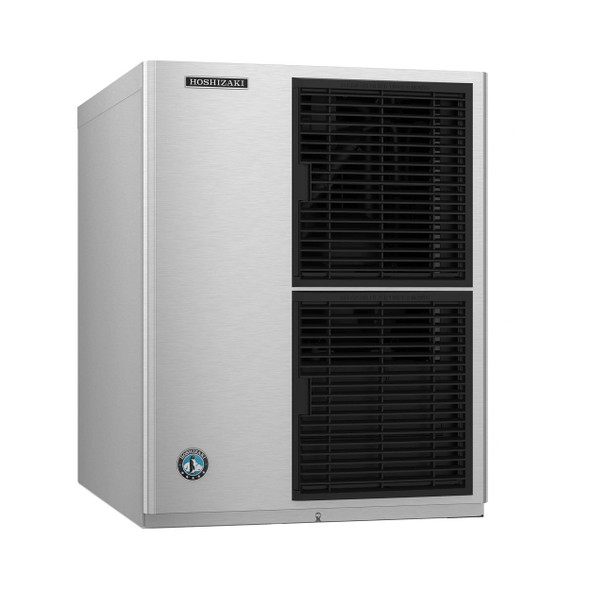

Hoshizaki KM-520MAJ Crescent Cuber Icemaker, Air-cooled
