Hoshizaki

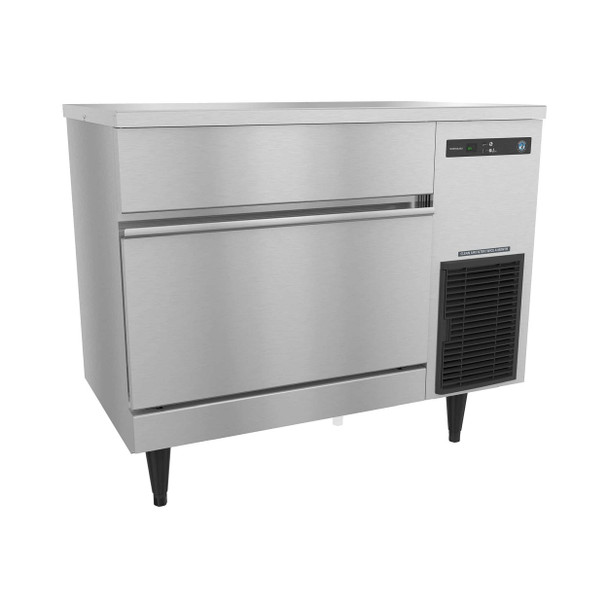

Hoshizaki IM-200BAC Air-cooled Square Cuber Icemaker with Built-In Storage Bin, 186 Lb./day, 115V

(No reviews yet) Write a Review
SKU:
IM-200BAC
MPN:
IM-200BAC
In-store only
Frequently bought together:

Description

  • Dimensions: 39-1/2″ W x 23-5/8″ D x 33- 1/2 ” H
  • Up to 188 lbs of ice produced per 24 hours
  • Up to 75 lbs of built-in storage capacity (2.5ft3)
  • Produces individual square cubes
  • Durable stainless steel exterior
  • Front in, front out airflow
  • EverCheck™ alert system
  • Each cube is made individually by a dedicated jet spray
  • Min Clearance: 0″ on top, 2″ on rear & left side, 6″ on right side. Or 2″ at top and rear, 5/8″ on left side, 6″ on right side.
  • R-404A refrigerant (10.6 oz. / 301 g)
  • Heat Rejection:3420 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 7.6 amps (15 Amp Max fuse)
  • 8.4 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1, 5′ 7/8″ ft cord with NEMA 5-15 plug
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.

Specifications

Weight212 lbs
Dimensions39-1/2" W X 23-5/8" D X 33- 1/2 " H in
Height33- 1/2 " H
Width39-1/2" W
Depth23-5/8" D
Shipping Weight212 lbs
WarrantyValid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts & Labor warranty on evaporator.|Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Certifications:AHRI Standard 810, NSF, UL Listed, ETL Safety Listed
Energy Star® Qualified:No
Electrical Specs:Single phase, 115v/60/1, 5' 7/8" ft cord with NEMA 5-15 plug, Amperage: 7.6, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:8.4 kWh per 100 lbs @ 90/70, 22.5 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 3420 BTU/hr, Refrigerant Charge: R-404A, (10.6 oz. / 301 g)

Documents

View AllClose

Additional Information

Width:
36 - 48 in
Electrical:
115/60/1
Bin Storage Capacity:
0 - 100 lbs
Condenser Type:
Air Cooled
Daily Ice Production:
101 - 200 lbs
View AllClose
