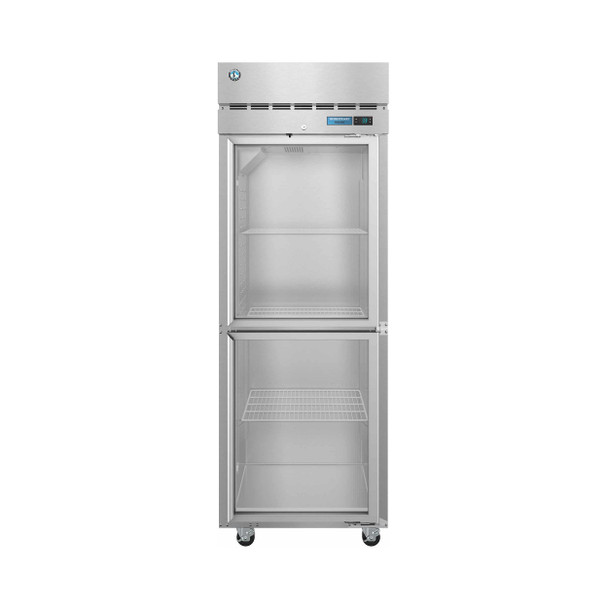

Hoshizaki F1A-HG Freezer, Single Section Upright, Half Glass Doors with Lock

Product Features

• Dimensions: 27.5″ W x 34.5″ D x 79.5″ H
• Net capacity of 23.1 cubic feet
• Nominal Compres. of 1425 BTU/hr at 3/4 HP
• Electrical consumption of 7.73 kWh/day, at 8.5 Amps on a 5 – 15P NEMA Plug
• Sturdy 8 gauge stainless steel hinge plate with welded hinge pin
• Spring assisted self-closing lockable doors with stay open feature (field reversible w/o kit)
• One piece, full length, chrome handle
• Unique “ducted” air distribution system
• Half Glass Doors come standard with locks
• Insulated with 2 3/8″ CFC free, foamed in place polyurethane
• Stainless steel interior with stainless steel exterior front, sides and top
• Solid state control system with temperature alarms and LED display (°F or °C)
• R290 refrigerant
• Refrigerant flow is controlled with a thermostatic expansion valve (TXV)
• Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion
• Includes 3 epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
• Interior LED light bars are vertically mounted on each wall
• Standard with (4) 4″ Stem Casters (2 with brakes)
• Optional kits: Additional epoxy or stainless steel shelves, universal tray/pan slides, foot pedal door opener, air filter
• 115v/60/1, 10 ft. cord and plug
• Shipping Crate: 37.5 “W x 31.5 “D x 81 “H at 365 lbs
• Top mounted energy efficient non-electric evaporation system
• Five Years compressor warranty, Three Years parts and labor warranty

The F1A-HG Steelheart Series Upright Single Section Freezer with Half Glass Doors is an attractive workhorse for any business. The dependable 3/4 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cold air through its unique ‘ducted’ air distribution system, which ensures a steady constant temperature.
The durable Stainless steel interior with stainless steel exterior front, sides and top resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The F1A-HG Includes 3 epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports, and comes Standard with (4) 4″ Stem Casters (2 with brakes), it features Spring assisted self-closing lockable doors with stay open feature (field reversible w/o kit). Optional kits: Additional epoxy or stainless steel shelves, universal tray/pan slides, foot pedal door opener, air filter. The unit is ETL Sanitation Listed, ETL Safety (US & C) Listed and includes a Five Years compressor warranty / Three Years parts and labor warranty.

Specifications

Documents

• Product Spec Sheet
