Hoshizaki

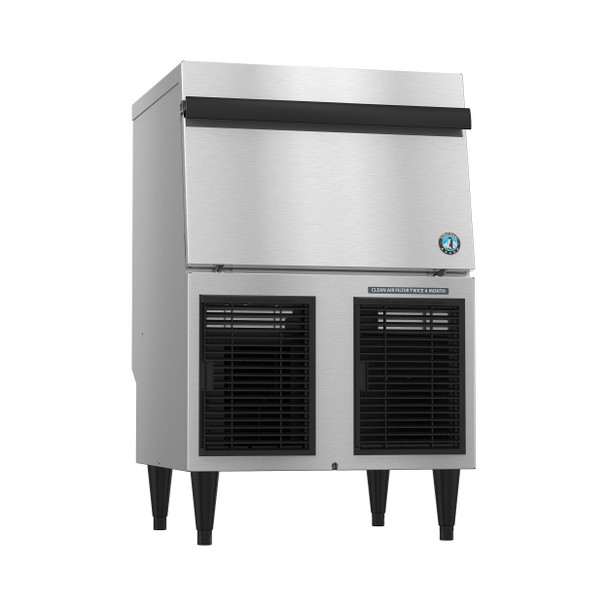

Hoshizaki F-330BAJ-C Cubelet Icemaker, Air-cooled, Built in Storage Bin
- SKU:
- F-330BAJ-C
- MPN:
- F-330BAJ-C
Description
Product Features
- Dimensions: 24″ W x 26″ D x 39″ H
- Up to 288 lbs of ice produced per 24 hours
- Up to 80 lbs of built-in storage capacity (2.7ft3)
- Produces small cubelet nugget-style ice
- Durable stainless steel exterior
- Convenient drop down stainless steel door
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (7.1 oz. / 200 g)
- Heat Rejection:3400 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 7.1 amps (15 Amp Max fuse)
- 7.3 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
The F-330BAJ-C is capable of producing approximately 288 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Self Contained, Built in Storage Bin icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-330BAJ-C requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection that is hard-wired at the installation site. Convenient drop down stainless steel door. Please consult the Specification Sheet for additional details.
Specifications
| Weight | 178 lbs |
| Dimensions | 24" W X 26" D X 39" H in |
| Height | 39" H |
| Width | 24" W |
| Depth | 26" D |
| Shipping Weight | 178 lbs |
| Warranty | Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor, air-cooled condenser coil.| |
| Certifications: | AHRI Standard 810, NSF, UL Listed, ISO 9001:14001 |
| Energy Star® Qualified: | No |
| Electrical Specs: | Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug, Amperage: 7.1, Max Fuse/HACR Breaker: 15 A |
| Plumbing Specs: | 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent |
| Utility Consumption: | 7.3 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70 |
| Operating Limits: | Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 3400 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200 g) |
Documents
Additional Information
Width: |
12 - 24 in |
Electrical: |
115/60/1 |
Bin Storage Capacity: |
0 - 100 lbs |
Condenser Type: |
Air Cooled |
Daily Ice Production: |
201 - 300 lbs |
We currently ship exclusively to the 48 contiguous states within the United States. For more details, please review our Shipping Policy.
Product images are provided for general reference and illustrative purposes only. Images may depict optional accessories, add-on components, features, finishes, packaging, or configurations that are not included with the listed item, and may in some cases show a similar product or model.
