Fagor

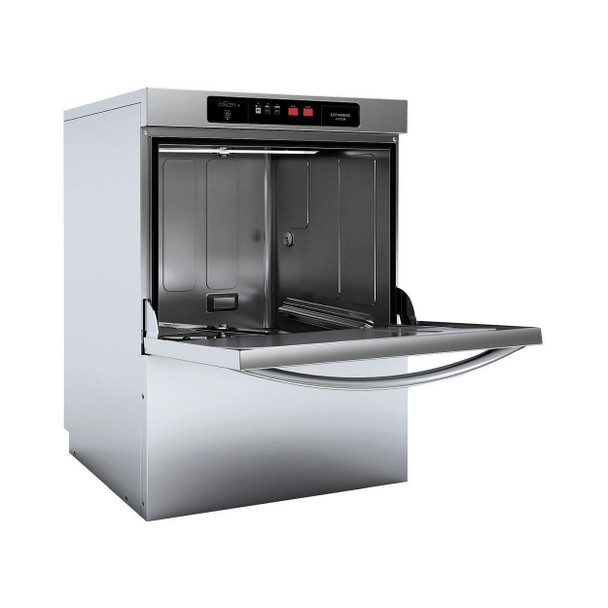

Fagor COP-504W High temp dishwasher, undercounter
- SKU:
- COP-504W
- MPN:
- COP-504W
Description
PRODUCTION
40 racks per hour (factory preset)
14-40 racks per hour (min-max power output range)
Standard rack size 20” x 20”
FUNCTIONS & BENEFITS
Effi Wash: New hydraulic system strengthens mechanical action combined with perfect clear water.
Effi Rinse: Built-in water pressure pump and air brake system assuring a linear 180°F full rinsing cycle.
Effi Silent: double skin for extra insulation on body and door.
Eco Fill: New thermostatic water tank filling system speeds up drastically the start-up
Soft Start: Wash-pump power control prevents wares from damage and reduces noise.
Multi Power: easily adapt the power level to your consumption and production needs.
Digital control panel with temperature display.
CONSTRUCTION
New stainless steel body structure with stamped design: wash tank, rack guides, control panel...
Stainless steel tray filters and wash/rinsing arms, independent.
Higher clearance: 15 1/4”.
Rock counterbalanced door, 3 step open system
IPX4 - Stronger humidity protection.
Multi-connection box: easy maintenance, phase and power level conversion in the field.
Built-in detergent, pressure and drain pumps.
Specifications
| Model | COP-504W |
| Electrical | 208-230/60/1, 208-230/60/3 |
| Power | 3.7 - 4.6 - 6.5 KW (half, 2/3rd, full) |
| Wash Pump | 34 HP |
| Dimension (WxDxH) | 26" x 29.5" x 40.5" |
Documents
Additional Information
High or Low Temp: |
High Temp |
Type: |
Undercounter Dishwashers |
Racks Per Hour: |
30 |
Energy Star Qualified: |
Yes |
Booster Heater Included: |
Yes |
Style: |
Rack |
