CMA

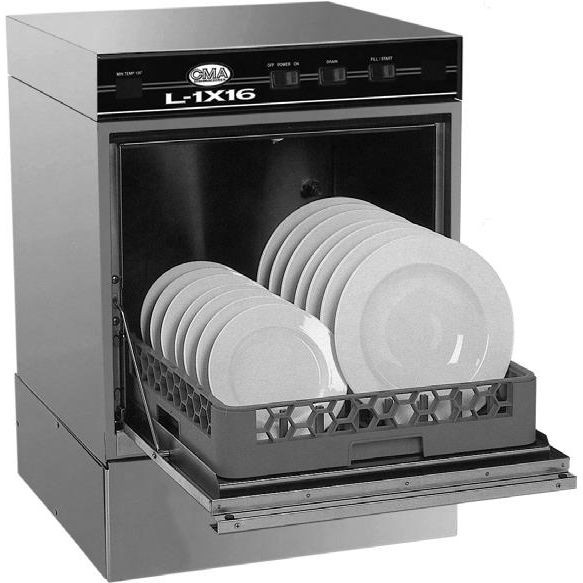

CMA L-1X16 Low Temp Undercounter 115V/60Hz w/Heater
(No reviews yet)
Write a Review
- SKU:
- CMA-01663.60
- MPN:
- L-1X16
Frequently bought together:
Description
Product Highlights
- 30 racks / 120 covers per hour.
- Economical to operate. Uses only 1.7 gallons of water per cycle.
- All stainless steel construction assures long life and years of trouble free operation.
- 16" door opening allows the washing of larger items.
- Unique spray arm system features upper and lower stainless steel wash arms with reinforced end caps.
- Built-in chemical pumps and deliming system assures proper chemical usage.
- Convenient to service “Work-in-a-drawer”. All electrical components are attached to a sliding drawer for easy access and service.
- Standard pump to draining or uphill stand pipe to drain.
- Pump purging system improves results by eliminating soil and chemical carryover during rinse cycle.
- Stainless steel pump impeller. Offers extended life and service.
- Built-in strainer in water inlet system to prevent water valve from clogging.
- Two dishracks included.
- Built-in primer switches.
- Built-in instant start.
- Door safety switch makes operation safe
Specifications
| Brand | CMA |
| Model | L-1X16 w/Htr |
| Electrical Rating | 115V |
| Dishrack Dimensions | 19-3/4" x 19-3/4" |
| Capacity | 30 Racks/hour |
| Operating Cycle (Seconds) | Wash: 58 Rinse: 32 Dwell: 30 Total: 120 |
| Wash Tank Capacity | 1.7 gallons |
| Pump Capacity | 35 GPM |
| Operating Temperature | 120 - 140F |
| Water Consumption | 1.7 gallons/rack |
| Motor | 1 HP (wash pump) |
| Dimension (WxDxH) | 24" x 23.5" x 34.25" |
Documents
Additional Information
Racks Per Hour: |
30 |
High or Low Temp: |
Low Temp |
Type: |
Undercounter Dishwashers |
Chemical Pumps Included: |
Yes |
We currently ship exclusively to the 48 contiguous states within the United States. For more details, please review our Shipping Policy.
Product images are provided for general reference and illustrative purposes only. Images may depict optional accessories, add-on components, features, finishes, packaging, or configurations that are not included with the listed item, and may in some cases show a similar product or model.
