Champion

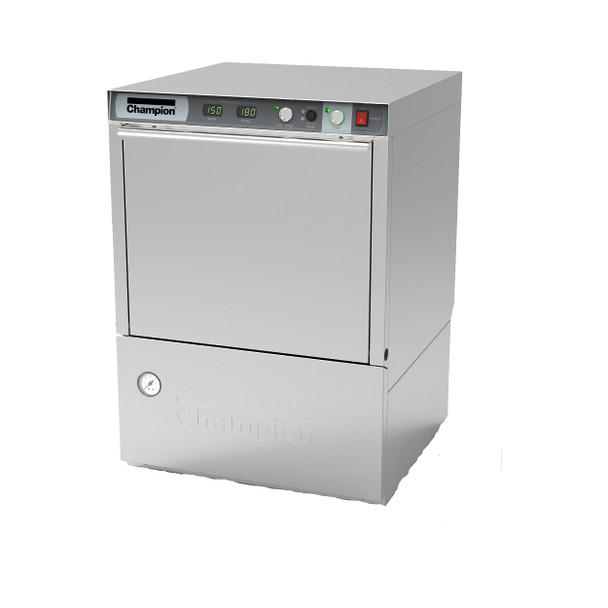

Champion UH230B Undercounter High Temperature Dishwashing Machine with Built-in Booster Heater
(No reviews yet)
Write a Review
- SKU:
- UH230B
- MPN:
- UH230B
Frequently bought together:
Description
Standard Features
- ENERGY STAR® Qualified
- NEW "Shear Energy" - a reduction in energy requirements while maximizing performance!
- NEW "Multi-Power" - included "Multi-Volt" and "Multi-Phase". Allows for infield conversion to 208-240 volt and/or single to three phase with ease
- STEMSURE™ - soft start to protect glasses and dishes from chipping and breaking
- Rinse Sentry - extends the cycle time to ensure 180°F final rinse
- Built-in electric booster for 180°F final rinse water
- Pumped drain
- Low-water tank heat protection
- Detergent and rinse aid pumps
- Quiet double-wall construction
- Door safety switch
- Independent stainless steel interchangeable upper and lower wash and rinse tank
- Stainless steel top and side panels
- 90 second cycle
- Extended wash for difficult ware cleaning & de-liming
- Automatic drain cycle
- 1 HP motor
- Automatic tank fill
- Advanced Digital Temperature Monitoring
- Stainless steel construction
Specifications
| Model | UH230B |
| Electrical | 208-240/60/1-3 Field convertible to accept 3 phase power see service manual for details |
| Capacity | 40 Racks/hr Cycle time 90 seconds |
| Water consumption | 0.78 gal./rack max. 23.4 gal./hour |
| Temperature (F) | Wash: 150F Rinse: 180 F |
| Motor | 1 HP |
| Heating | 2.0 kW Tank heat 6 kW for electric booster for 70F 9kW for electric high speed booster for 100F |
| Time cycle in seconds | Wash: 70 Rinse: 14 Total Cycle: 90 |
Documents
Additional Information
Energy Star Qualified: |
Yes |
High or Low Temp: |
High Temp |
Style: |
Undercounter Dishwashers |
Booster Heater Included: |
Yes |
Racks Per Hour: |
40 |
